Manufacture ISUZU 4x2 27 Meters 32 Meters Aerial Platform Truck

Transmission Type : Manual

Condition : New

Emission Standard : EURO 5

Fuel Type : Diesel

Dimensions (L x W x H) (mm) : 5995*1960*3000mm

Place of Origin : Hubei, China

Brand Name : SCS

After-sales Service Provided : Onsite Installation, Field installation, commissioning and training, Field maintenance and repair service

Horsepower : < 150hp

Engine Capacity : 4 - 6L

Fuel Tank Capacity : 100-200L

Control system : Hydraulic Control Aerial Platform Truck

Drive type : 4*2 LHD/RHD

Bucket max height : 20.3m/34.3m/45.3m

Color : Requirements

Vehicle name : Aerial Operation Truck

Lift Mechanism : Telescoping Lift

Outrigger Lateral span : Front5500mm /back5500mm

Standing Legs : Front V and rear V single leg

Degree of the overturn : 360°

Price : CN¥133,767.95/units >=1 units

Contact Now

Product Description

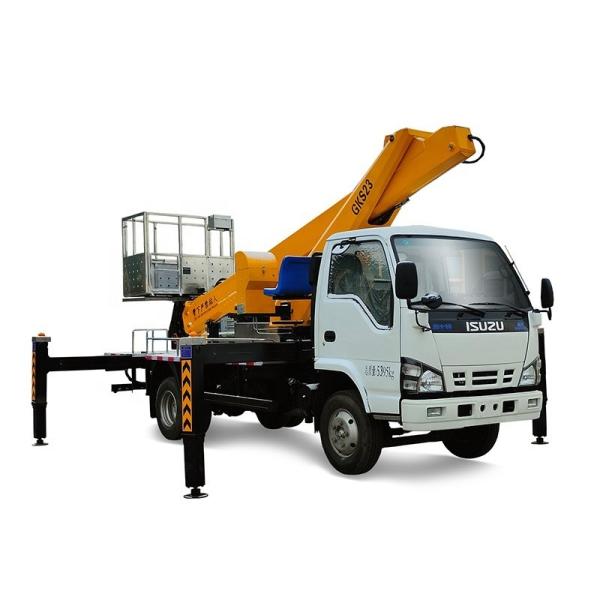

Manufacture ISUZU 4x2 27 Meters 32 Meters Aerial Platform Truck

Vehicle information Items	Technical parameters
Chassis model	QL1040A6FAY
Brand of chassis	ISUZU 4x2
Hand driven	Left hand
Overall dimensions ( L * W * H)	5995×1960×3000m
Lifting height	27 meters
Lifting weight	200 KGS
Wheel base	2795 mm
Tire	6.50R16LT 10PR (6+1 spare)
Engine	4KH1CN5LS
Emission Standard	Euro V
Transmission	MSB Five speed
Traction system	4x2
Number of axles	2
Electric system	24V
Displacement	72kw/2999ml
Engine horsepower	98 hp
Axle load	2.0tons (front)/4-4.8tons (rear)
Approach angle /Departure angle	20/12
Cabin seat	2
Max.speed	103 km/h
Operation control system	Steering wheel
Equipment	Air-condition/Radio/USB/Power steering

Standard Equipment	Equipped with engine device, emergence power units
Technical parameters	Boom	Five hexagonal arms, synchronous telescopic
	Max operation height	27 meters
	Max operation rear	21 meters
	Max lifting height side	18 meters
	Working platform rating loading	200 kg
	Working platform dimension	1600×650×1150mm
	Degree of the overturn:	360°turning(left or right)
	Standing Legs	Front V and rear V single leg
	Leg span	Horizontal	5500 mm
		vertical	5500 mm

Packaging & Shipping

Manufacture ISUZU 4x2 27 Meters 32 Meters Aerial Platform Truck

If you have any questions or need much more information, pls do not hesitate to contact with me.

More specs , photos, price, delivery time and other need,

please contact with Kilen.

Hotline(whatsapp): 0086 155 8688 7678

Welcome to visit our company! Suizhou city, Hubei Province.
